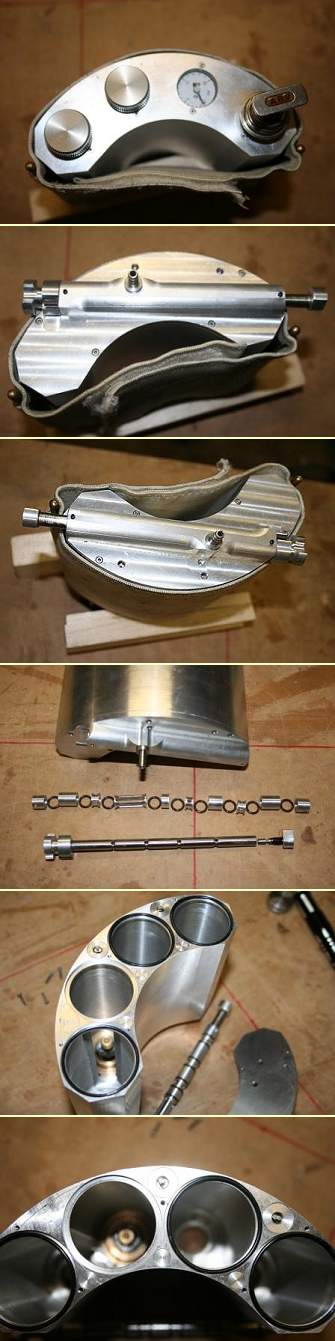

Pictures and drawings of the multi-chambered pressurized refuelling tank Grant Potter built to help win the 2008 F2C World Championships.

Grant's pictures as a clickable image

Engineering drawings are available here in pdf format for anyone wanting to make a multi-chambered pressurized refuelling tank like this for themselves.

SHEET 1.pdf    SHEET 2.pdf    SHEET 3.pdf    SHEET 4.pdf    SHEET 5.pdf    SHEET 6.pdf    SHEET 7.pdf    SHEET 8.pdf    SHEET 9.pdf    SHEET 10.pdf    SHEET 11.pdf    SHEET 12.pdf
